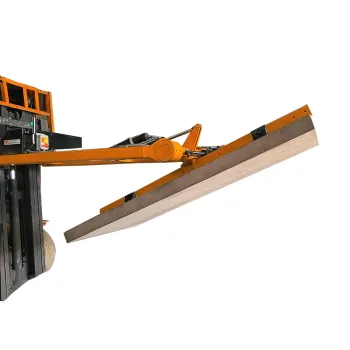

Fork Mounted Vacuum Lifting Attachment

Name: Fork Mounted Vacuum Lifting Attachment FMVLA04-2T
Brand: Aardwolf
Rating: 5 (3 reviews)

Ürün Kodu: FMVLA04-2T

General

The Fork Mounted Vacuum Lifting Attachment is designed to lift and lower sheet materials. The device combines a vacuum lifter with a fork truck and remote control for handling diversified types of sheet, plate, and large panels such as glass, stone, metal, concrete, plastics, timber, and laminates.

Features

Ability to rotate and tilt 90 degrees through an electrically operated remote control.
Vacuum pads can be easily adjusted.
The pressure control system automatically activates the vacuum pump once the pressure exceeds the limit.
Operated by an Australian Standard AS4991-2004 battery.
Audio/visual safety system.
Integrated with a forklift through a safe chain system.
It provides versatile lifting that is cost-effective.
It is more versatile than magnets and more productive than clamps or slings.

Specifications

	Metric	Imperial
Length-width of sheet material	3000 x 3000 mm	118" - 118"
Pad sizes	508mm x 808mm	20"x32"
Working load limit	2000 kg	4408 lb
Net weight
Gross weight
Packaging dimensions

Battery information for the device

Power supply	24V-100A battery
Charging requirements	24V-20A
Standby time	>100 hours
Charging cycle	1000 times
Charging time	5 hours
Non-stop working time	3 hours
6-month warranty

Motor information for the device

Model	THOMAS – VTE 10
Motor	24V AC – 30A
Flow	10 m³/h
Vac.	150 mbar abs
