LIFTING EQUIPMENT Aardwolf Slab Lifter Aardwolf Slab Lifter - AL40

Aardwolf Slab Lifter

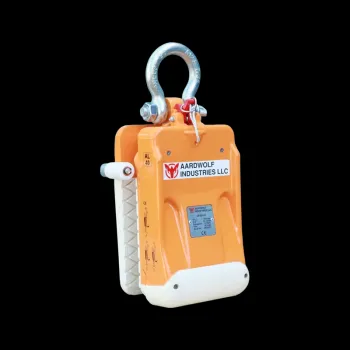

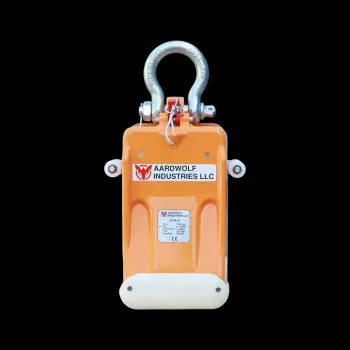

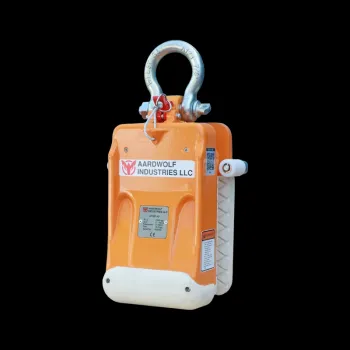

Name: Aardwolf Slab Lifter AL40
Brand: Aardwolf
Rating: 5 (3 reviews)

Product Code: AL40

General

The patented Aardwolf Slab Lifter 40 is an accessory for lifting and moving slab-form loads. The Aardwolf Slab Lifter incorporates a spring-loaded latch that automatically releases the lifter from the slab once the slab has been fully lowered to the ground. This makes the process of lifting and lowering slabs a one-person operation.

Features

Size: Being of compact construction, the Aardwolf Slab Lifter AL40 allows for close-packed stone slabs to be lifted out of racks and containers. Lower-height slabs alongside taller slabs offer no problem, as with scissor clamps.
Versatile: Ideal for construction work. Because the clamping mechanism is to the front of the slab, they allow panels to be placed close against walls.
Safety: Requires only a small movement of the slab to engage and grip it, which is generally well below the over-balance angle, thus eliminating the danger to the operator.
Secure: The Aardwolf clamps grip marble and granite slabs firmly. The Aardwolf Slab Lifter AL40 has a force-multiplying factor of approximately 2.5 to 1.

Specifications

Item	Metric	Imperial
Grip range	3 – 40 mm	1/8" – 1 5/8"
Working load limit	1200 kg	2646 lbs
Net weight	20.2 kg	44.53 lbs
Gross weight	21.0 kg	46.30 lbs
Packaging dimensions	310 × 210 × 410 mm	12 1/4" × 8 1/4" × 16 1/8"
